Clark & Soma
Modernize

BMS Graphics Modernization

Rebuild dated, cluttered building automation graphics into clear, responsive operator screens that make equipment status, alarms, and system behavior easy to read on the controllers you already own.

Talk to usAll services
Before / after

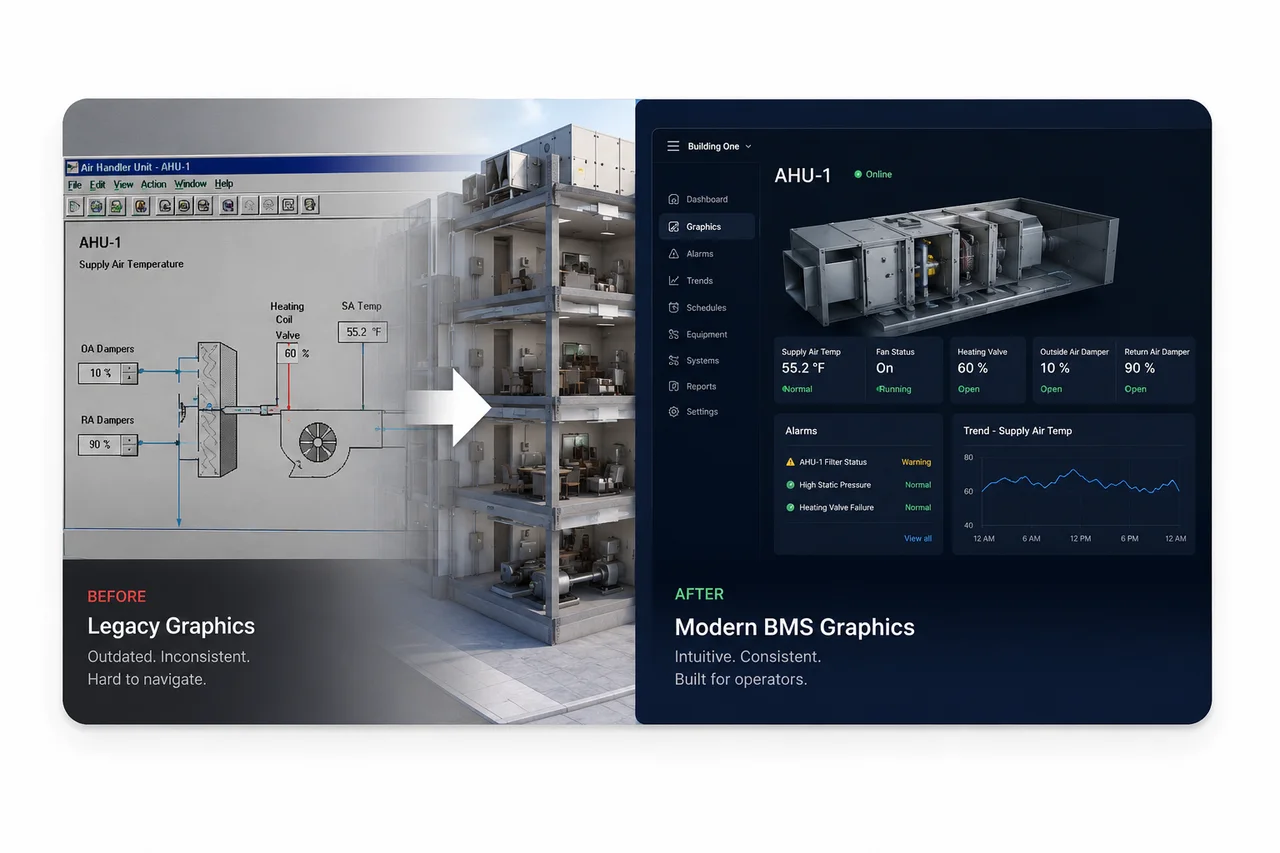

Side-by-side comparison of an air handler screen: a dated legacy SCADA window for AHU-1 on the left versus a modern, dark-themed BMS dashboard on the right showing the same unit online with supply-air temperature, fan status, valve and damper positions, active alarms, and a supply-air-temp trend.
What modern operator screens look like

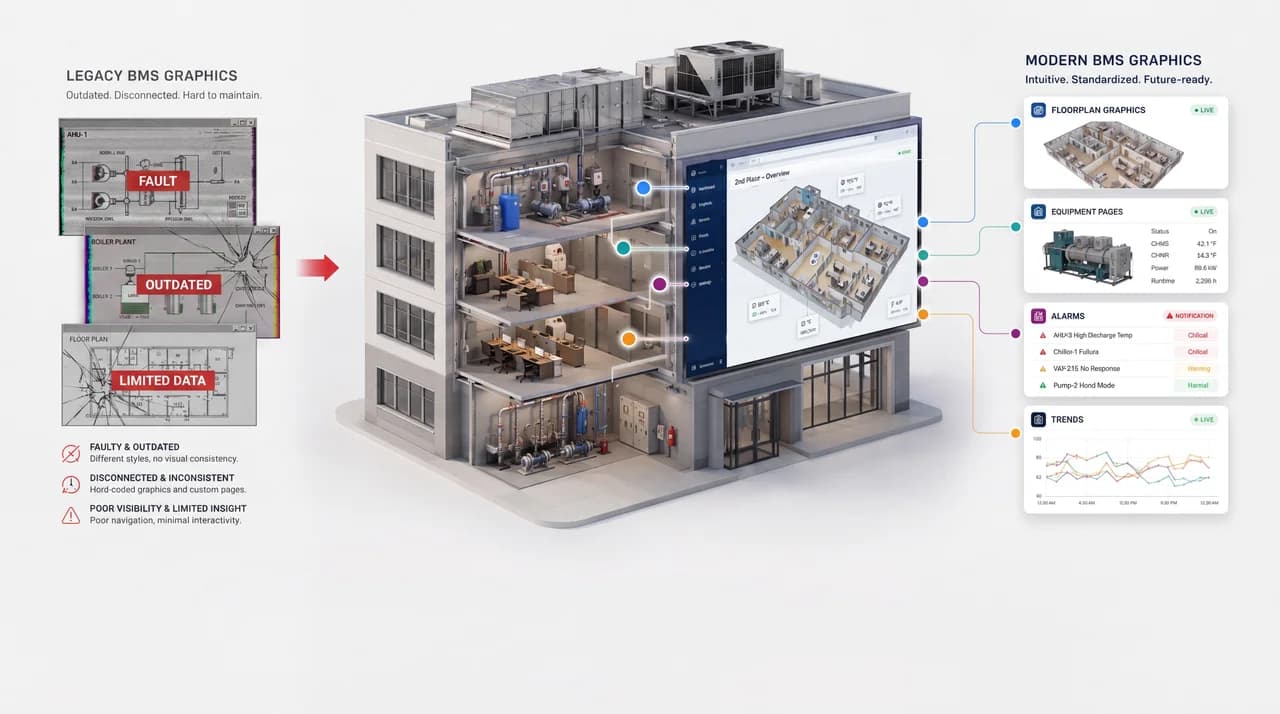

Building cutaway flanked by legacy BMS graphics on the left (faulty, outdated, limited-data screens) and modern BMS graphics on the right: live floorplan graphics, equipment pages, alarms, and trends.

What you get

Operators locate and resolve issues faster

Readable floor plans and equipment views, consistent across every screen

Works on desktop and mobile

Keeps your existing controllers and field devices

How it works

  1. 01

    Audit

    Review your current graphics, navigation, and pain points.

  2. 02

    Design

    Lay out a clean screen hierarchy and visual standard.

  3. 03

    Build

    Rebuild graphics with live points and intuitive navigation.

  4. 04

    Deploy

    Cut over and train your operators.

Common questions

Do you replace our controllers?

No. Graphics modernization runs on your existing control hardware.

How long does it take?

Most graphics projects are among the fastest improvements you can make to a building system.

Keep exploring

More ways we modernize buildings.

See all services

Ready to modernize your building systems?

Request controls assessmentContact us
